DONG HO Ultrasonic Advanced Metal Welder
Product Sample
Ultrasonic Metal Spot Welder & Wire Termination
Model: MPL-50
Frequency: 20KHz
Power: 2400,3600,4800,6000W
Welding Force: 1200Newton Max.
Control Voltage: 24V
Welding Stroke: 50MM
Model: MPS-30
Frequency: 35KHz
Power: 1200W
Welding Force: 440Newton Max.
Control Voltage: 24V
Welding Stroke: 30MM
Model: MPS-20
Frequency: 40KHz
Power: 800W
Welding Force: 380Newton Max.
Control Voltage: 24V
Welding Stroke: 20MM
Main Features:
-
The pressure designed for air compressor in the same axis with the welding module ensure the stability under large pressure.
-
Pneumatic control component of proportional valve with high accuracy and stable output
-
Easy operation and powerful function
-
6 welding modes and 4 trigger modes
-
Welding data saved in USB barcode to control welding quality in real time
-
Intelligent control and digitalized ultrasonic system to make welding output more stable
-
Durable tools, quick tool charges

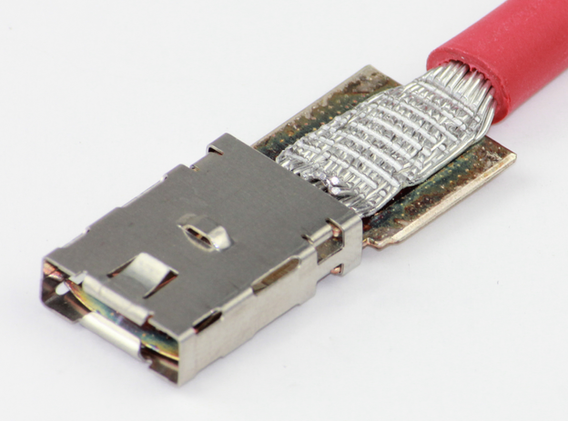

Wire Termination
Spot Welding
Ring Termination
Wire Splicer Hardness Welder TH-M
Model: TH-M
Frequency: 20KHz
Power: 2400W, 3600W, 4800W, 6000W
Welding Force: 1200Newton Max.
Control Voltage: 24V
Welding Stroke: 30m
Welding Capabilities
Cross Section Wire: 0.26mm² - 48mm²
Wire Type: Copper(Cu) , Aluminium(Al) , Tin Coated , Enamel Coated
Main Features:
-
Easy operation and powerful function
-
Excellent cylinder with proportional valve to accurately control pressure
-
Multiple quality control modes to monitor welding quality
-
Multiple welding modes
-
Multi-level password and authority management
-
Welding data saved in USB barcode to control welding quality in real time
Wire Splicer
MGS4080P - Ultrasonic Metal Welder System
Digital Ultrasonic electric box series
Features:
-
Frequency: 20KHz , 35KHz
-
Power: 1200W - 6000W
-
Automatic frequency regulation system
-
Constant ultrasonic amplitude
-
Fine adjustment of ultrasonic amplitude
-
Ultrasonic soft start
-
Overload protection system
-
Automatic frequency and power display by LED
Custom or Standard Ultrasonic Metal Welding Tool Series
Ultrasonic Metal Sonotrode & Fixture
-
20KHz , 35KHz , 40KHz to individual customer requirement
-
Sonotrodes from steel
-
Various design for splicing , spot , cross joint , terminate joint , etc
-
Surface treatment and various contours possible
Ultrasonic Metal Booster & Converter
-
Frequency range of 20KHz , 35KHz , 40KHz
-
Output power 1200W - 6000W
-
Modulator made by titanium and steel
-
Low loss & true amplitude & transfer
-
Designed for different magnificent
